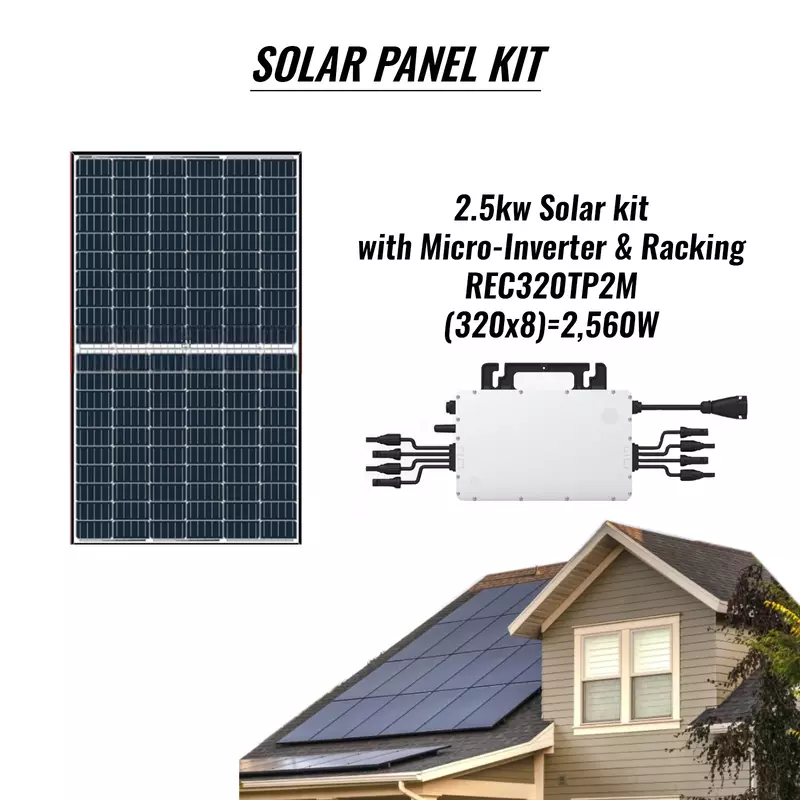

2.5KW Solar Panel DIY Grid-Tie Kit | Micro-Inverter & Racking System

🌞 Product Overview

Optimize your solar investment and create a more resilient energy future with our 2.5KW DIY Solar Kit. Designed for easy installation, this kit works perfectly on shingles, metal, or any roof type. Complete guidance is provided for successful DIY installation based on your project requirements.

🔍 Virtual Site Inspection

We provide custom design plans based on your site data. Plans are guaranteed to be approved by the city and utility. Revisions are included at no extra cost until approval from all jurisdictions.

• If an engineering structure letter or stamp is required, it can be provided for $200–$600.

🏗️ Racking System

Every component has been tested in extreme environments for superior structural performance. Our unique design features ensure durability, safety, and easy installation.

• Integrated Grounding (UL 2703) – eliminates separate module grounding components.
• Class A Fire Rating – maintains roof fire resistance
• 20-Year Warranty – twice the protection offered by competitors
• PE Certified – pre-stamped engineering letters available in most states

⚡ Micro-Inverter

Micro-inverters are built for safety and stability, operating at <60V DC with 6,000V surge protection and IP67 enclosure ratings. Individual panel-level cloud monitoring allows early problem detection for 24/7 property safety. Easy plug-and-play installation. Compliant with CA Rule 21 and U.S. NEC 2017 & NEC 2020 690.12 Rapid Shutdown.

📦 This System Includes

• REC Solar DIY Modules
• Black-on-White Modules (perfect for your roof)
• 2x Micro-Inverters (four panels per inverter)
• Wi-Fi Cloud Monitoring System
• Racking System with attachments
• PV Cable & Connectors, Micro-Inverter Cabling & Connectors
• Utility Disconnect Box
• Grid Tie-In Connectors & Roof Junction Box (per plan set)

⚙️ Additional Equipment Required

For home run wiring (from array to main service panel or meter), you need:

• Wiring: AWG 10 or 8
• Conduit: ¾-inch or 1-inch EMT, PVC, or Flex Liquid Tight

🛡️ Panel Warranty & Certification

• 20-Year Warranty for Materials and Processing
• 25-Year Warranty for Extra Linear Power Output
• Certifications: IEC 61215, IEC 61730, UL 1703, UL 61730, IEC 62804 (PID), IEC 62716 (Ammonia Resistance), IEC 61701 (Salt Mist Level 6), ISO 9001:2015, ISO 14001:2004, OHSAS 18001:2007

💬 Contact Us

For any questions or concerns, please contact us directly for expert support and guidance. Returns accepted for 30 days.
