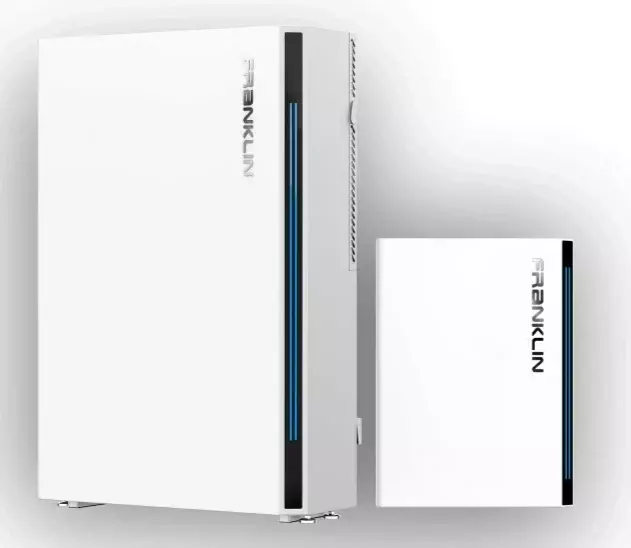

FranklinW APR-10K15V2-US 15Kwh AC Battery 10Kw 120/240V
The FranklinWH APR-10K15V2-US is a high-performance 15kWh AC battery system designed for modern energy storage applications. Delivering reliable backup power and optimized energy usage, it combines intelligent design, safety, and efficiency for both residential and commercial installations.
Share :
FranklinWH APR-10K15V2-US | 15kWh AC Battery 10kW 120/240V
β‘ Product Overview
The FranklinWH APR-10K15V2-US is a high-performance 15kWh AC battery system designed for modern energy storage applications. Delivering reliable backup power and optimized energy usage, it combines intelligent design, safety, and efficiency for both residential and commercial installations.
With a compact, air-cooled design, the battery integrates seamlessly with the aGate 1.3 energy management system, enabling uninterrupted power during grid outages while simplifying installation and maintenance.
π Key Features
- High Power Output: 10 kW continuous, 15 kW peak for 10 seconds.
- Scalable Capacity: 15 kWh per unit, expandable up to 15 units (225 kWh total).
- Superior Efficiency: 90% round-trip efficiency ensures maximum energy utilization.
- Advanced LFP Chemistry: Lithium Iron Phosphate cells provide enhanced safety and long lifespan.
- Weather-Resistant Enclosure: Suitable for indoor and outdoor use (IP56/IP67 rated).
- Natural Air Cooling: Silent operation with no moving parts or fans.
- Smart Energy Management: Monitor, control, and optimize energy in real-time via the FranklinWH App.
π Applications
- Residential and commercial solar energy storage
- Backup power during grid outages
- Load shifting and time-of-use optimization
- Off-grid energy solutions
ποΈ Build & Design
- Form Factor: Compact wall or floor-mounted AC battery.
- Enclosure: IP56 (wiring), IP67 (battery & inverter) rated for durability in indoor/outdoor conditions.
- Cooling: Passive air cooling ensures quiet operation and long life.
- Integration: Seamless connectivity with aGate 1.3 energy management system.
π Technical Specifications
- Model Number: APR-10K15V2-US
- Battery Type: Lithium Iron Phosphate (LFP)
- Nominal Output Power: 10 kW continuous
- Peak Output Power: 15 kW for 10 seconds
- Nominal Voltage: 120/240 V, 60 Hz
- Energy Capacity: 15 kWh per unit
- Ingress Protection: IP56 (wiring), IP67 (battery & inverter)
- Dimensions (HxWxD): 45.2 Γ 29.5 Γ 11.8 inches
- Weight: 357 lb
π‘οΈ Warranty & Certifications
- Product Warranty: 10 years
- Performance Warranty: 90% round-trip efficiency guaranteed
- Certifications: UL, IEC standards for safety and reliability
π Note: For bulk orders, commercial projects, or certified installation support, contact the FranklinWH team for customized APR-10K15V2-US solutions.
