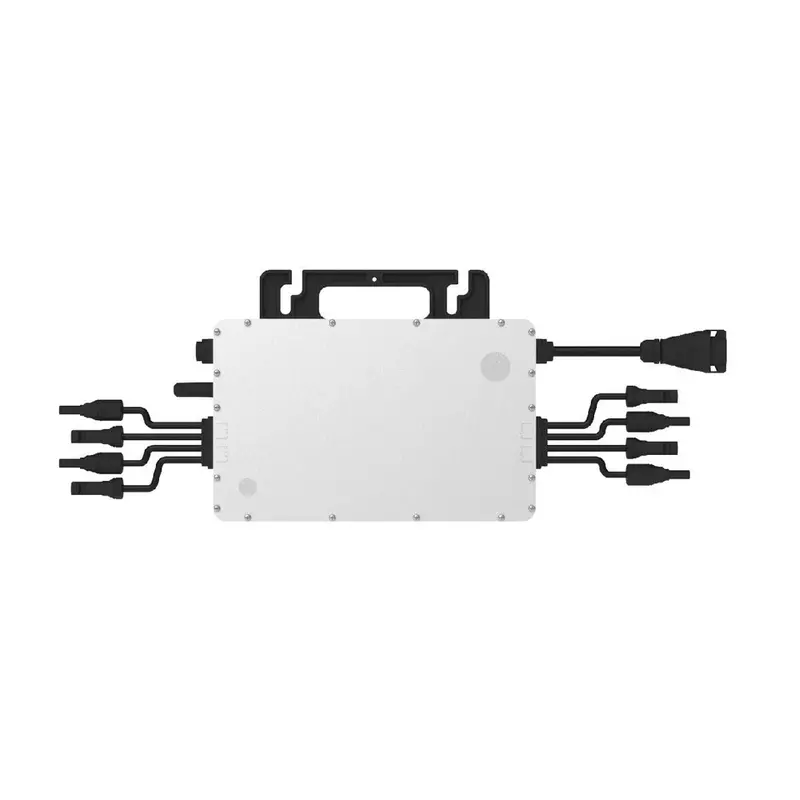

Hoymiles 4-in-1 Solar Micro-Inverter | 1500W Grid-Tie MPPT DC to AC 240V
🌞 Product Overview
The Hoymiles 4-in-1 Micro-Inverter is a cost-effective module-level solar solution that supports up to 4 panels simultaneously, maximizing PV production for your solar installation. Engineered for safety and stability, it operates at <60V DC with 6,000V surge protection and IP67 waterproof enclosure ratings. Enjoy industry-leading reliability with premium components.
⚡ Key Features
- Easy installation – plug and play
- Compatible with panels from 300W to 505W
- Max input voltage: 60V, Max input current: 4×11.5A
- Nominal output voltage: 240V (Range: 211-264V)
- Reactive power control compliant with CA Rule 21
- Compliant with US NEC-2017 & NEC-2020 Rapid Shutdown
- Advanced MPPT technology for maximum efficiency
🧰 Accessories (Sold Separately)
Complete your solar installation with our premium accessory kit designed specifically for the Hoymiles 4-in-1 Micro-Inverter. Includes all components required for professional installation:
- AC Trunk Cable 10 AWG (6.5 feet)
- Port Cap
- End Cap
- Port Disconnect Tool
- Connector Unlock Tool
📊 Technical Specifications
- Max Output Power: 1500W
- Supported Panels: 4 Panels
- Max Input Voltage: 60V DC
- Operating Temperature: -40°C to +65°C
- Weight: 2.8 kg
- Dimensions: 330×215×40mm
- Waterproof: IP67
🛠️ Additional Services
- Engineering Design: Professional solar system design
- Racking Systems: Mounting solutions for all roof types
- Installation: By certified technicians
- Plan Approvals: Permit submission guidance
✅ Certifications & Compliance
Compliant with UL 1741, IEEE 1547, CA Rule 21, NEC 2020, and international safety standards.
🛡️ Warranty
Industry-leading 25-Year Performance Guarantee.
