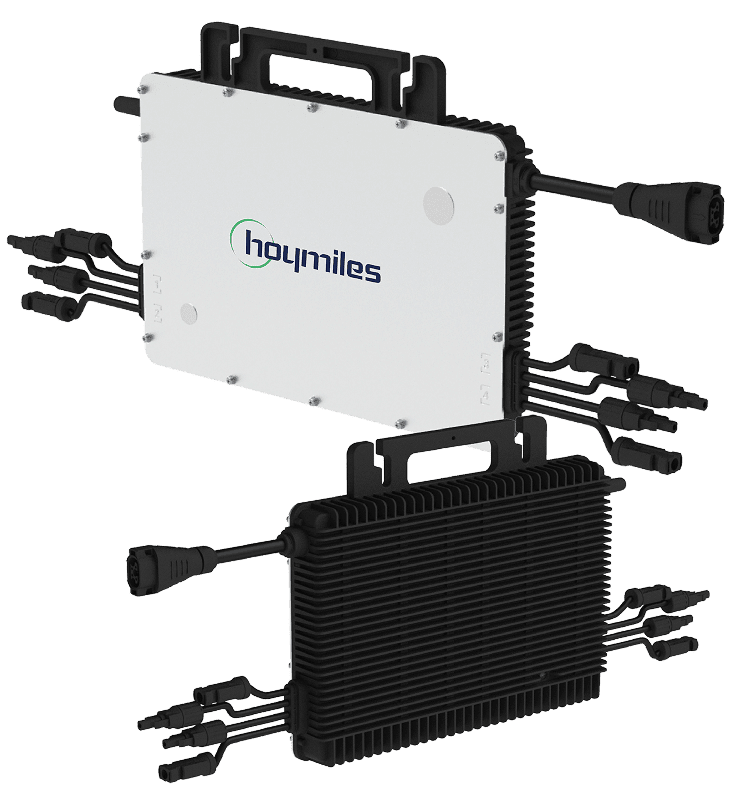

Hoymiles Microinverter HM-2000NT with Low Failure Rates & High Durability
Revolutionize your solar investment with the 4-in-1 Microinverter, engineered to manage up to four solar panels simultaneously. This advanced technology delivers unmatched efficiency and reliability, optimizing energy harvest from each panel while minimizing installation and equipment costs.
Share :
Hoymiles Microinverter HM-2000NT with Low Failure Rates & High Durability
β‘ Product Overview
Revolutionize your solar investment with the 4-in-1 Microinverter, engineered to manage up to four solar panels simultaneously. This advanced technology delivers unmatched efficiency and reliability, optimizing energy harvest from each panel while minimizing installation and equipment costs.
Built for safety and durability, it operates at low DC voltage (<60V) with military-grade 6,000V surge protection and a robust IP67-rated enclosure. Enjoy real-time panel-level monitoring, superior performance, and consistent energy output even in varying sunlight conditions.
π Key Features
- Supports up to 4 solar panels simultaneously
- Low-voltage operation under 60V DC for enhanced safety
- Military-grade 6,000V surge protection
- Weatherproof IP67 enclosure for outdoor durability
- Panel-level monitoring for optimized energy production
- Reduces equipment and installation costs compared to traditional string inverters
- Compliant with US NEC 2017 & 2020 and CA Rule 21
π Technical Specifications
- Dimensions: 331 Γ 218 Γ 36.6 mm
- Max Input Voltage: 65V
- Peak Output Power: 2000VA
- Maximum Continuous Output Power: 1918VA
- Number of Modules Connected: 4
- MPPT Voltage Range: 16Vβ60V
- Commonly Used Module Power: 400W to 670W+
- Number of MPPTs: 4
- Max Input Current: 4 Γ 16A
- Nominal Output Voltage/Range: 240/211β264 V
π‘ Performance & Safety
- Independent operation for each panel maximizes energy conversion efficiency
- Low-voltage design ensures maximum safety for installers and users
- IP67-rated enclosure protects against environmental elements
- 6000V surge protection safeguards against power spikes
π οΈ Additional Services & Accessories
- Engineering design and planning guidance
- Racking systems available
- Installation services by experts
- Accessories (sold separately):
- AC Trunk Cable 10 AWG (6.5 ft) with connector
- Port Cap
- End Cap
- Port Disconnect Tool
- Connector Unlock Tool
- Permit submission guidance and plan approvals
π Applications
- Residential Solar Installations: Maximize energy harvest with low-voltage, safe, and efficient microinverter technology.
- Small Commercial Projects: Ideal for rooftop solar arrays requiring scalable and cost-effective solutions.
- Retrofits & New Installations: Easy plug-and-play installation reduces setup time and labor costs.
π Warranty & Reliability
- Up to 25 years warranty for long-term reliability
- Lowest failure rates in the industry due to premium components and strict quality control
- Optimized performance ensures consistent energy production over the lifespan of the system
π Note: For custom configurations or quantities, please contact us directly.
