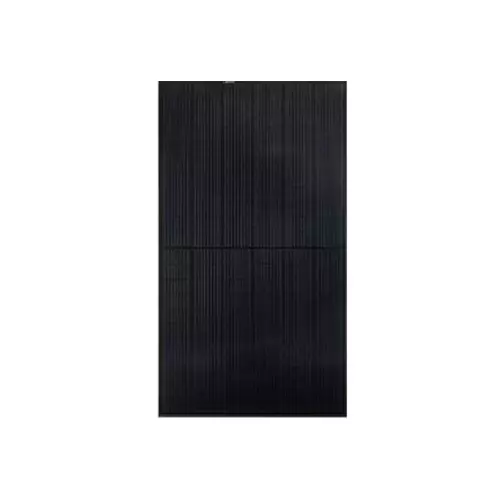

REC 420AA PURE-R | 420W Bifacial Heterojunction Solar Panel
⚡ Product Overview
The REC 420AA PURE-R solar panel represents the next generation of high-efficiency solar innovation. Designed with 80 half-cut REC bifacial heterojunction cells and lead-free gapless technology, this panel delivers exceptional power density and long-term performance. Its anti-reflective glass and all-black finish make it both technologically advanced and visually stunning for modern installations.
🔋 Key Features
- Cell Type: 80 half-cut REC bifacial heterojunction cells with lead-free, gapless design
- Glass: 3.2 mm solar glass with anti-reflective coating for maximum light capture
- Backsheet: Highly resistant black polymer for durability and sleek aesthetics
- Frame: Black anodized aluminum providing structural strength and corrosion resistance
- Junction Box: 4-part IP68-rated with 4 bypass diodes for optimal current flow
- Connectors: Stäubli MC4 PV-KBT4/KST4 (IEC 62852 compliant)
- Cables: 12 AWG PV wire, 67 + 67 inches in length
- Origin: Manufactured in Singapore under advanced production standards
📊 Technical Specifications
- Model: REC 420AA PURE-R
- Power Output: 420 Wp
- Module Efficiency: 21.8%
- Nominal Module Operating Temperature (NMOT): 44°C ± 2°C
- Dimensions (L × W × H): 68.1" × 44.0" × 1.2" (1730 × 1118 × 30 mm)
- Weight: 47.4 lbs (21.5 kg)
- System Voltage (Max): 1000 V
- Operational Temperature Range: -40°C to +85°C
- Front Glass: 3.2 mm tempered, anti-reflective treated
- Junction Box Rating: IP68
🏗️ Durability & Reliability
- Load Capacity: High test load with safety factor of 1.5
- Environmental Resistance: Certified for salt mist, ammonia, and dynamic mechanical loads
- Design: Lead-free and RoHS EU 863/2015 compliant for sustainable performance
💡 Performance & Warranty
- Low Light Behavior: Exceptional performance under low irradiance conditions
- Efficiency: Up to 21.8% conversion efficiency
- Product Warranty: Up to 25 years (product and power)
- Labor Warranty: Available for installations by REC Certified Solar Professionals
🏠 Certifications
- IEC 61215:2016, IEC 61730:2016, UL 61730 certified
- RoHS EU 863/2015 lead-free compliant
- Certified for resistance to environmental corrosion and mechanical stress
📞 Note: For bulk orders, technical consultation, or solar system design assistance, please contact our support team.
