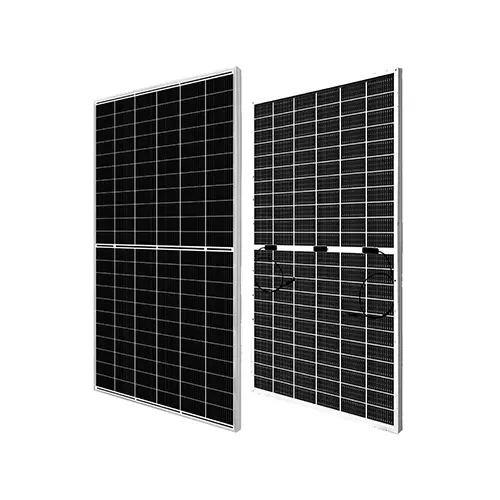

665W Canadian Bifacial Mono PERC Solar Panel | CS7N-665MB-AG

⚡ Product Overview

The Canadian CS7N-665MB-AG is a high-power 665W bifacial monocrystalline PERC solar panel engineered for superior energy yield and reliability. Its bifacial design captures sunlight from both front and rear, boosting overall energy generation. Ideal for utility-scale, commercial, and high-performance residential installations.

🔋 Key Features

• High Power & Efficiency: 665W rated output with mono PERC cells for maximum energy generation.
• Bifacial Energy Gain: Rear-side light capture increases energy output up to ~30% depending on installation.
• Durable Construction: Anodized aluminum frame with tempered glass for long-term reliability.
• Advanced Cell Technology: Half-cut and multi-busbar design reduces resistive losses and improves performance in shading.
• All-Black Design: Sleek aesthetic suitable for visible installations while maintaining high efficiency.
• Weather & Temperature Performance: Optimized for extreme conditions with low temperature coefficient.
• Warranty: Long-term product and performance coverage ensures peace of mind.

📊 Technical Specifications

• Model: CS7N-665MB-AG
• Rated Power Output: 665 W
• Module Efficiency: ~21.2%
• Cell Type / Count: Monocrystalline PERC, 144 half-cut bifacial cells
• Open Circuit Voltage (Voc): 49.8 V
• Short Circuit Current (Isc): 14.0 A
• Maximum Power Voltage (Vmp): 41.6 V
• Maximum Power Current (Imp): 15.98 A
• Maximum System Voltage: 1500 V DC
• Connector Type: MC4 compatible
• Frame: Black anodized aluminum
• Glass: 3.2mm tempered AR-coated
• Dimensions (L×W×H): 2278 × 1134 × 35 mm
• Weight: 32.5 kg (71.7 lbs)
• Operating Temperature: -40°C to +85°C
• Certifications: IEC 61215, IEC 61730, UL 61730

🏠 Applications

• Utility-Scale Solar Farms: High-output modules for maximum energy harvest.
• Commercial Installations: Offices, factories, and warehouses requiring high-efficiency panels.
• Residential High-Power Systems: Large homes or premium installations seeking top-tier performance.
• Bifacial & Hybrid Systems: Open-space and rooftop setups optimized for rear-side energy gain.

💡 Warranty & Performance

• Product Warranty: 25 years (materials and workmanship)
• Performance Warranty: 30-year linear power guarantee

📞 Note: For bulk orders, system design assistance, or custom configurations, please contact us directly.
