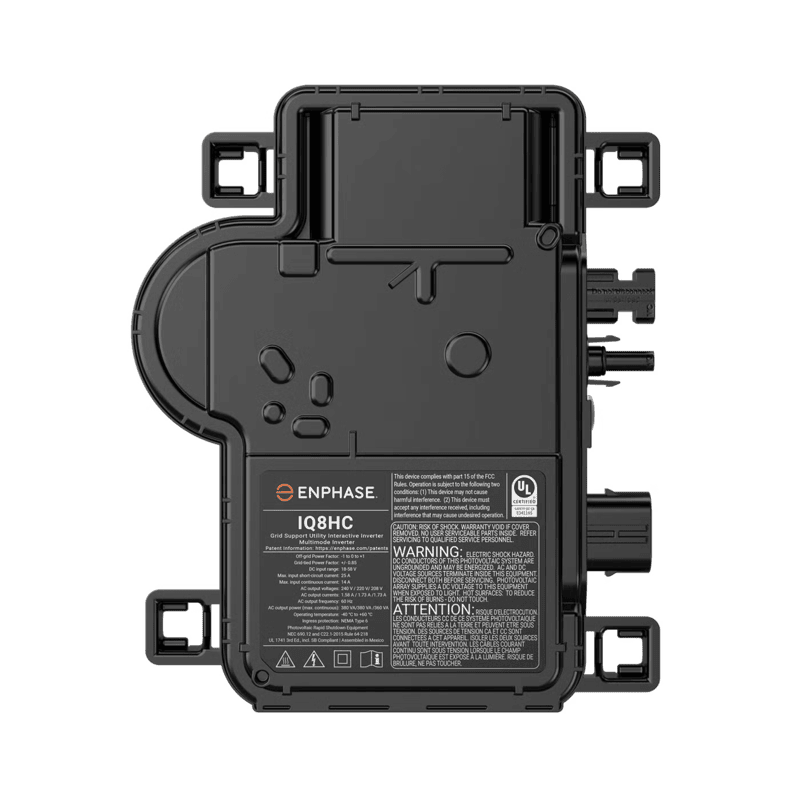

Enphase IQ8HC-72-M-US Microinverter | 240V | 384VA Max Power | Made in USA
⚡ Product Overview
The Enphase IQ8HC-72-M-US is a high-efficiency microinverter designed for residential solar installations. It delivers 384VA maximum power and converts DC power from solar panels to AC power efficiently, supporting both grid-tied and off-grid operation. Made in the USA, this microinverter integrates seamlessly with Enphase IQ Battery, IQ Gateway, and the Enphase App for monitoring and energy management.
Its advanced ASIC design optimizes energy production at the individual panel level, enhancing system efficiency, reliability, and resilience under varying conditions.
🔋 Special Features
- Advanced Microgrid Technology: Industry-first microgrid-forming microinverter for flexible energy management.
- High Reliability: Over a million hours of power-on testing for durable performance.
- Peak Efficiency: High-speed ASIC design with up to 97% peak efficiency.
- Grid & Off-Grid Operation: Capable of operating in both modes for reliable energy conversion.
- Smart Integration: Works with Enphase IQ Battery, IQ Gateway, and Enphase App.
📊 Technical Specifications
- Nominal Voltage: 240V
- Peak Output Power: 384 VA
- Maximum Continuous Output Power: 380 VA
- Maximum Continuous Output Current: 1.58 A
- Efficiency: 97% peak, 97% CEC
- Operating Temperature Range: -40°C to 65°C
- Dimensions: 212 x 175 x 30.2 mm
- Connector Type: Staubli MC4
- Compliance: UL 1741-SA, IEEE 1547:2018, CA Rule 21
🏗️ Installation & Setup
- Quick Connection: Integrated Staubli MC4 connectors allow fast and secure installation.
- Plug-and-Play Design: Easy setup with PLC communication for monitoring and microgrid capability.
- Flexible Compatibility: Optimized for high-powered PV modules.
🏠 Applications
- Residential solar energy systems
- High-powered PV modules requiring efficient energy conversion
- Grid-tied and off-grid solar installations
- Integration with Enphase IQ Battery and IQ Gateway
🛡️ Warranty & Certifications
- Warranty: 25-year manufacturer-backed warranty for long-term reliability
- Certifications: UL 1741-SA, IEEE 1547:2018, CA Rule 21 compliant
📞 Note: For bulk orders, custom installations, or certified integration support, contact Enphase authorized installers for tailored solutions.
