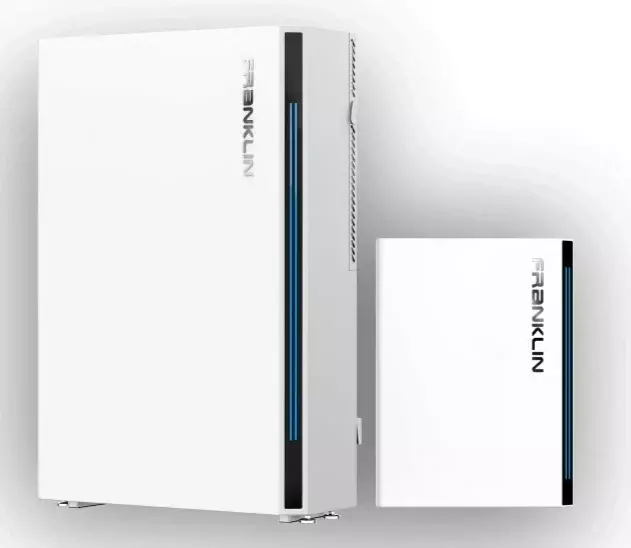

FranklinWH APR-10K15V2-US | 15kWh AC Battery 10kW 120/240V

⚡ Product Overview

The FranklinWH APR-10K15V2-US is a high-performance 15kWh AC battery system designed for modern energy storage applications. Delivering reliable backup power and optimized energy usage, it combines intelligent design, safety, and efficiency for both residential and commercial installations.

With a compact, air-cooled design, the battery integrates seamlessly with the aGate 1.3 energy management system, enabling uninterrupted power during grid outages while simplifying installation and maintenance.

🔋 Key Features

• High Power Output: 10 kW continuous, 15 kW peak for 10 seconds.
• Scalable Capacity: 15 kWh per unit, expandable up to 15 units (225 kWh total).
• Superior Efficiency: 90% round-trip efficiency for maximum energy utilization.
• Advanced LFP Chemistry: Lithium Iron Phosphate cells for enhanced safety and long lifespan.
• Weather-Resistant Enclosure: Suitable for indoor/outdoor use (IP56/IP67 rated).
• Natural Air Cooling: Silent operation with no fans or moving parts.
• Smart Energy Management: Monitor, control, and optimize energy in real-time via FranklinWH App.

🏗️ Build & Design

• Form Factor: Compact wall or floor-mounted AC battery
• Enclosure: IP56 (wiring), IP67 (battery & inverter) rated for durability indoors/outdoors
• Cooling: Passive air cooling ensures quiet operation and long life
• Integration: Seamless connectivity with aGate 1.3 energy management system

📊 Technical Specifications

• Model Number: APR-10K15V2-US
• Battery Type: Lithium Iron Phosphate (LFP)
• Nominal Output Power: 10 kW continuous
• Peak Output Power: 15 kW for 10 seconds
• Nominal Voltage: 120/240 V, 60 Hz
• Energy Capacity: 15 kWh per unit
• Ingress Protection: IP56 (wiring), IP67 (battery & inverter)
• Dimensions (HxWxD): 45.2 × 29.5 × 11.8 inches
• Weight: 357 lb

🏠 Applications

• Residential & Commercial Solar Storage: Reliable backup and optimized energy usage
• Backup Power: Maintains electricity supply during grid outages
• Load Shifting & TOU Optimization: Efficient energy management
• Off-Grid Energy Solutions: Independent power systems for remote locations

🛡️ Warranty & Certifications

• Product Warranty: 10 years
• Performance Guarantee: 90% round-trip efficiency
• Certifications: UL, IEC standards for safety and reliability

📞 Note: For bulk orders, commercial projects, or certified installation support, contact FranklinWH for customized APR-10K15V2-US solutions.
