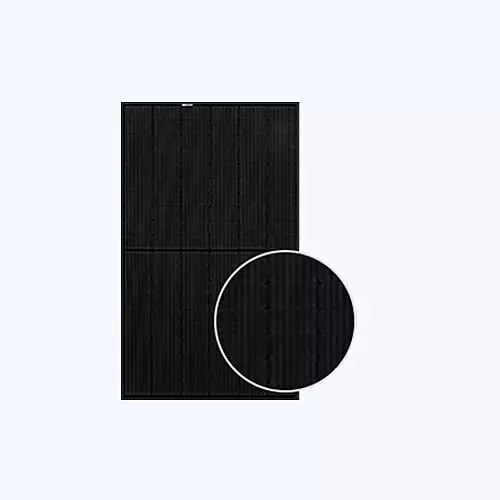

Jinko Solar Panel - 420W JKM420N-54HL4R-B High Efficiency Residential
The Jinko Solar Tiger Neo N-Type (JKM420N-54HL4R-B) is a premium solar module designed for exceptional efficiency, long-term durability, and consistent performance. With advanced N-type cell technology and superior light-trapping design, this panel ensures maximum energy yield across diverse installation environments.
Share :
Jinko Solar Tiger Neo N-Type 420W | High-Efficiency Monocrystalline Solar Panel
⚡ Product Overview
The Jinko Solar Tiger Neo N-Type (JKM420N-54HL4R-B) is a premium solar module designed for exceptional efficiency, long-term durability, and consistent performance. With advanced N-type cell technology and superior light-trapping design, this panel ensures maximum energy yield across diverse installation environments.
Built for strength and reliability, each Tiger Neo panel is engineered to perform optimally in hot climates, shaded conditions, and challenging weather — offering stable output and minimal degradation over its lifetime.
Backed by Jinko Solar’s global reputation for innovation and manufacturing excellence, this module provides long-term value for residential, commercial, and utility-scale projects worldwide.
🔋 Key Features
- Advanced N-Type Technology: Increases light absorption and power generation efficiency.
- High Performance in Shaded Conditions: Maintains reliable output even under partial shading.
- Durable Frame: Resistant to salt mist, ammonia, and harsh weather conditions.
- Low Temperature Coefficient: Delivers better performance in hot climates.
- Minimal Power Degradation: Ensures long-term power stability and consistent production.
- Enhanced Durability: Designed for long operational life and superior mechanical strength.
- Global Quality Standards: Tested and certified under IEC standards for top-tier performance.
📊 Technical Specifications
- Model Number: JKM420N-54HL4R-B
- Rated Power Output: 420W
- Cell Type: Monocrystalline N-Type (54 cells)
- Module Efficiency: ≥21%
- Dimensions: 1750 x 1030 mm
- Weight: 20 kg
- Temperature Coefficient (Pmax): -0.30% / °C
- Operating Temperature Range: -40°C to +85°C
- Frame Color: Black anodized aluminum
- Backsheet: Black polymer backsheet
- Certifications: IEC 61215, IEC 61730, UL 61730, CE, TÜV Rheinland
🏗️ Build & Design
- Frame: High-strength aluminum alloy for improved rigidity and protection.
- Glass: 3.2mm tempered, anti-reflective solar glass for maximum sunlight transmission.
- Design: Sleek, modern appearance suitable for residential and commercial rooftops.
- Junction Box: IP68 rated for long-term weather and moisture resistance.
🏠 Applications
- Residential rooftops requiring high-efficiency solar solutions.
- Commercial and industrial installations focused on long-term reliability.
- Agricultural and off-grid projects requiring maximum yield in diverse environments.
🛡️ Warranty & Certifications
- Product Warranty: 25 years (materials and workmanship)
- Performance Warranty: 30-year linear power output guarantee
- Certifications: IEC 61215, IEC 61730, UL 61730, CE-compliant, TÜV Rheinland Quality Certified
📞 Note: For bulk orders, large-scale projects, or certified installation support, contact our Jinko Solar specialists for tailored system recommendations.
