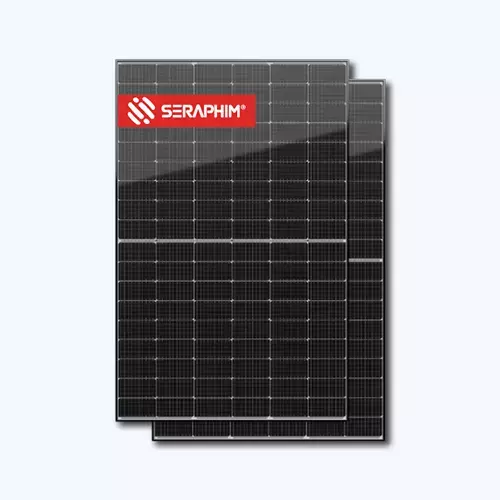

Seraphim Solar Panel 415W - SIV Series PV Module SRP-415-BMD-BG
The Seraphim 182mm High-Efficiency Solar Panel represents the next generation of solar power technology, featuring advanced 182mm silicon wafers, multi-busbar architecture, and half-cut cell design. This combination boosts power output, reduces internal energy loss, and ensures excellent long-term reliability.
Share :
Seraphim 182mm Series | High-Efficiency Monocrystalline Solar Panel
β‘ Product Overview
The Seraphim 182mm High-Efficiency Solar Panel represents a next-generation solar technology platform featuring advanced 182mm silicon wafers, multi-busbar design, and half-cut cell architecture. This combination reduces energy loss, increases power output, and ensures industry-leading stability and performance.
Engineered for utility-scale and commercial installations, Seraphim panels provide exceptional energy yield even under low-light conditions. Every module undergoes triple EL testing to guarantee high quality, long-term durability, and defect-free performance.
π Key Features
- 182mm Wafer Design: Larger cell area increases energy absorption and improves efficiency.
- Multi-Busbar & Half-Cut Technology: Reduces internal resistance and enhances current flow.
- Lower Mismatch Losses: Consistent energy output across large arrays with minimal performance variation.
- Reduced Shading Impact: Optimized cell layout delivers stable performance under partial shade.
- Superior Low-Light Output: High energy generation in cloudy or early-morning environments.
- Triple EL Inspections: Ensures flawless modules before shipment.
- Ideal for Utility & Commercial Projects: Designed for low BoS cost and maximum return on investment.
π Technical Specifications
- Cell Type: Monocrystalline, 182mm half-cut cells
- Busbar Technology: Multi-busbar system
- Module Efficiency: Up to 21% (model dependent)
- Operating Temperature Range: β40Β°C to +85Β°C
- Mechanical Load Capacity: 5400 Pa (snow) / 2400 Pa (wind)
- Glass: 3.2mm high-transmittance tempered glass
- Frame: Anodized aluminum alloy
- Junction Box: IP68-rated with 3 bypass diodes
- Connector Type: MC4 compatible
- Maximum System Voltage: 1500V DC
ποΈ Build & Design
- Half-Cut Cell Structure: Minimizes resistive losses for improved output.
- Optimized Busbar Layout: Ensures uniform current distribution across the module.
- Reinforced Aluminum Frame: Enhanced corrosion resistance and structural stability.
- Durable Modern Build: Long-lasting design ideal for large-scale deployments.
π Applications
- Utility-Scale Solar Farms: Maximum energy output for large field installations.
- Commercial & Industrial Rooftops: Reliable performance with long-term stability.
- Large Hybrid or Off-Grid Systems: Ideal for high-capacity energy storage and solar arrays.
π‘οΈ Warranty & Certifications
- Product Warranty: 15-year materials and workmanship coverage
- Performance Warranty: 30-year linear power output guarantee
- Annual Degradation: β€0.45% per year after the first year
- Certifications: IEC 61215, IEC 61730, ISO 9001, ISO 14001, OHSAS 18001
π Note: For bulk procurement, utility-scale project design, customized configurations, or special pricing, please contact our sales team for dedicated Seraphim solar solutions.
