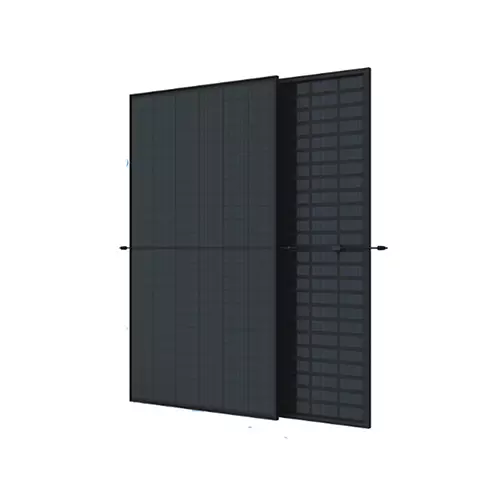

Trina 440W Vertex S+ Bifacial Solar Panels | TSM-440-NE09RC05

⚡ Product Overview

The Trina Vertex S+ 440W Bifacial Solar Panel offers advanced energy generation technology with high-efficiency mono PERC cells. Its bifacial design captures sunlight from both sides, increasing overall energy yield. Ideal for commercial, utility-scale, and residential applications requiring maximum performance and durability.

🔋 Key Features

• High Efficiency: 440W rated output with high-density mono PERC cells for superior energy production.
• Bifacial Energy Gain: Rear-side energy capture increases total output up to ~25% depending on installation.
• Durable Construction: Strong anodized aluminum frame with tempered glass for long-term reliability.
• Half-Cut Cell Technology: Reduces resistive losses and improves performance under shading.
• Low LCOE: Optimized cost-to-energy ratio for utility and commercial systems.
• All-Black Aesthetic: Sleek black finish suitable for visible roof installations.
• Certified Durability: Tested for wind (2400 Pa) and snow loads (5400 Pa) to withstand extreme weather.

📊 Technical Specifications

• Model: TSM-440-NE09RC05
• Rated Power Output: 440 W
• Module Efficiency: ~20.7%
• Cell Type / Count: Monocrystalline PERC, 144 half-cut bifacial cells
• Open Circuit Voltage (Voc): 49.7 V
• Short Circuit Current (Isc): 11.45 A
• Maximum Power Voltage (Vmp): 41.8 V
• Maximum Power Current (Imp): 10.52 A
• Maximum System Voltage: 1500 V DC
• Connector Type: MC4 compatible
• Frame: Black anodized aluminum
• Glass: 3.2mm tempered AR-coated
• Dimensions (L×W×H): 2115 × 1048 × 35 mm
• Weight: 26 kg (57.3 lbs)
• Operating Temperature: -40°C to +85°C
• Certifications: IEC 61215, IEC 61730, UL 61730
• Pallet Quantity: 36 panels

🏠 Applications

• Utility-Scale Solar Farms: Ideal for large-scale energy production.
• Commercial Installations: Offices, retail, and industrial buildings requiring high energy density.
• Residential High-Power Systems: For homeowners seeking premium bifacial performance.
• Bifacial Ground-Mount Systems: Optimized for rear-side irradiance capture in open-space installations.

💡 Warranty & Performance

• Product Warranty: 25 years (materials and workmanship)
• Performance Warranty: 30-year linear power guarantee

📞 Note: For bulk orders, project-specific design support, or custom configurations, please contact our sales team directly.
